Production process
PT. Balikpapan Chip Lestari is equipped with state of the art integrated production facility and controlled production process, from sourcing of sustainable plantation logs to final delivery to customers. BCL has deployed multi-layered quality control system that ensure product quality and consistency.
Process Flow
Integrated Production Process to Ensure Woodchip Quality and Consistency.

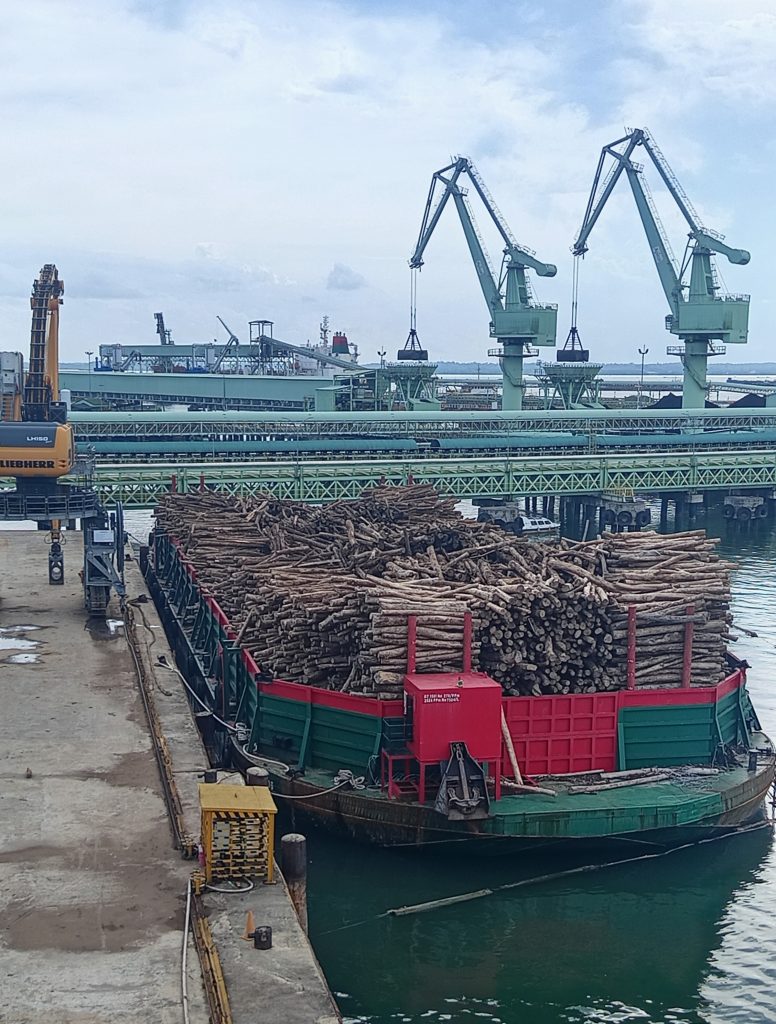

Barging
Barging is the process of transporting plantation logs from sustainable Industrial Plantation Forests (HTI) in Kalimantan (forestry) to the mill using a floating barge via river and sea. The barges used vary in size from 230 to 345 feet with a capacity of 3,000 to 10,000 GMT.

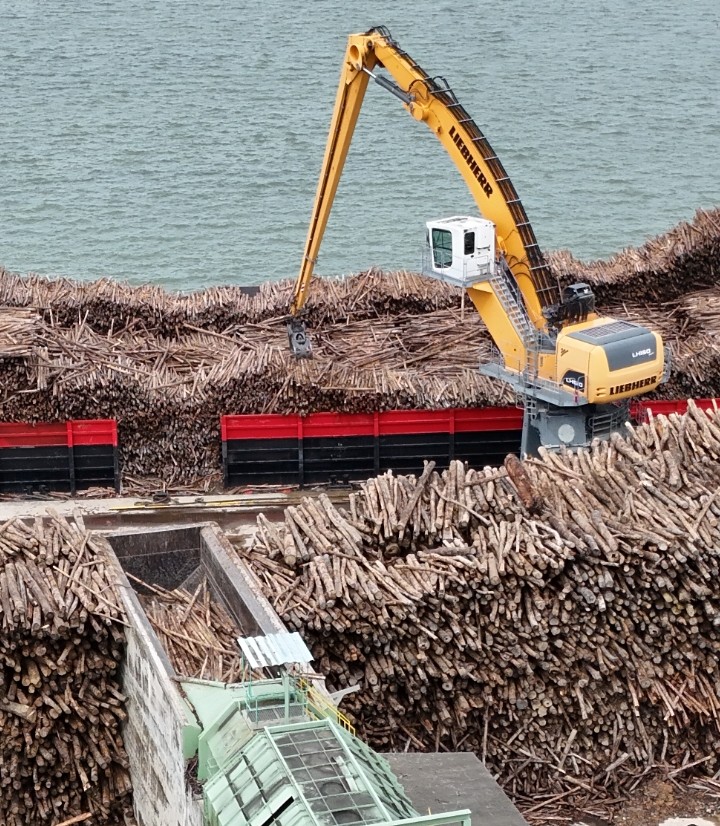

Log Unloading
and Feeding
Log unloading and feeding is the process of unloading logs from the barge directly feed to Gentle Feed wood receiving machine using Electric Material Handler with capacity of 5 tons per grab.

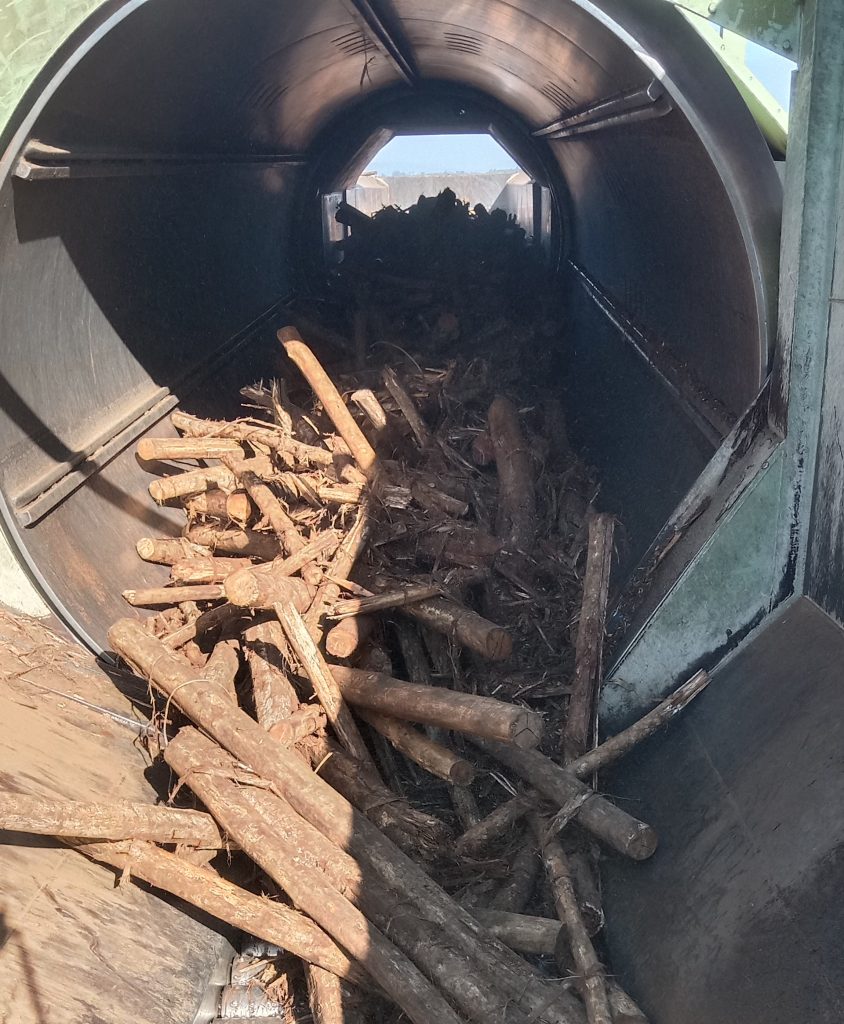

Log Debarking
Debarking is the process of separating wood bark from the wood and eliminating other contaminants such as sands and soils. The debarking process occurs mechanically in the debarking drum.

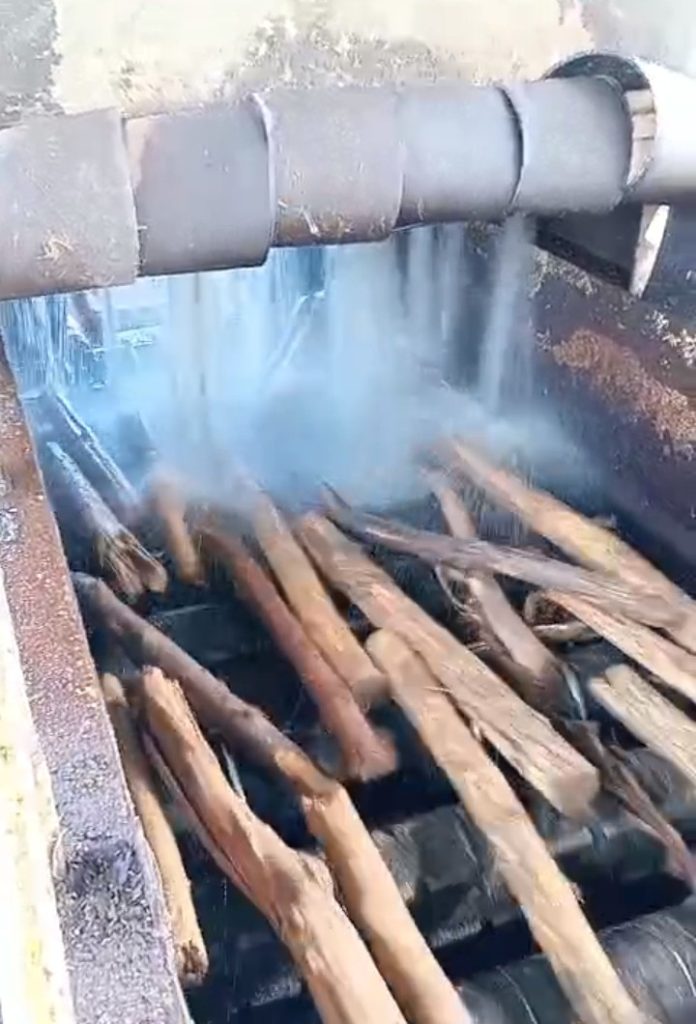

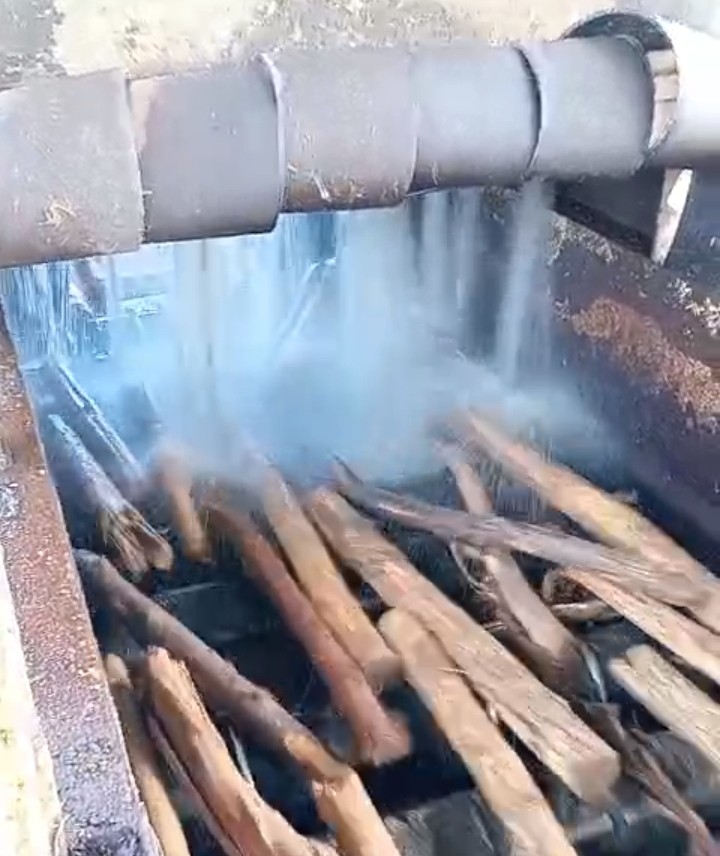

Log Washing
Log washing takes place in the washing roll area which is equipped with high-pressure water spray. Wood that has been peeled in the debarking drum will go to the washing roll area for washing process. This process aims to clean the logs from contaminants that stick to the logs such as sands, soils and others.

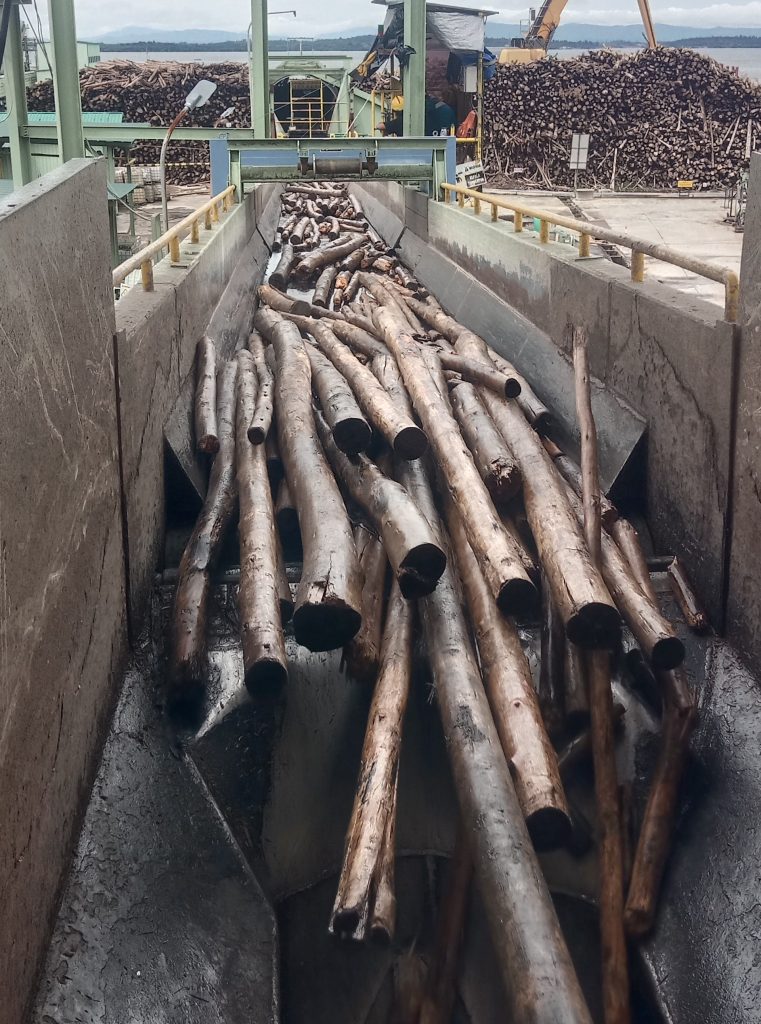

Chipping
Chipping is the process of chipping log into small desired chip size. The wood is chipped in a chipper machine equipped with 12 blades attached to a disc chipper. The wood chips are then sent to chip screener for quality screening.

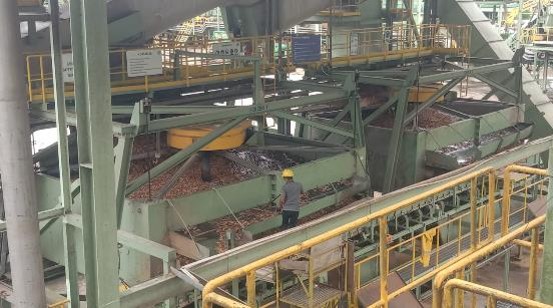

Screening
Screening is the process of separating chips according to the specified size, in this process the chips will be separated into 3 parts, oversize chips, accept chips and fines.
Oversize chips are chips with larger size than the maximum permitted limit. Oversize chips will be forwarded to re-chipper machine to be re-chipped into acceptable size.
Accepted chips are chips that are in line with customers’ specifications. From chip-screener they will be forwarded to wood chip pile.
Fines are smaller-than standard chips. From the chip screen, the fines aresent to bark waste collection point for disposal as biomass.

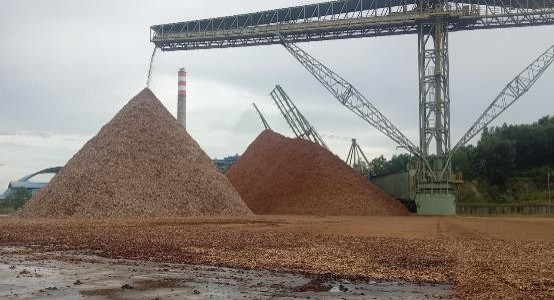

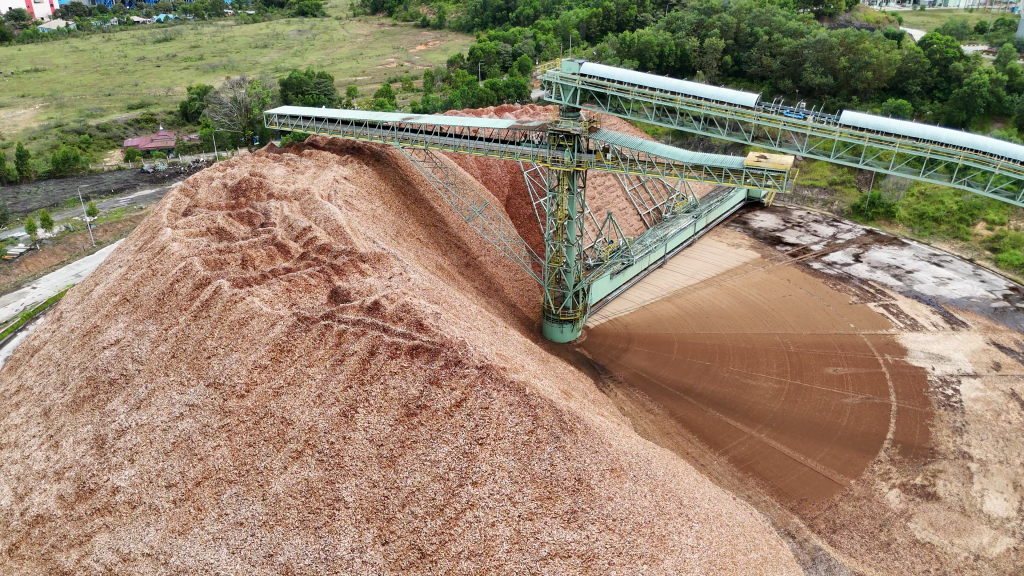

Chip Stacking
Chip stacking is the collecting of wood chip product in wood chip pile before shipments.

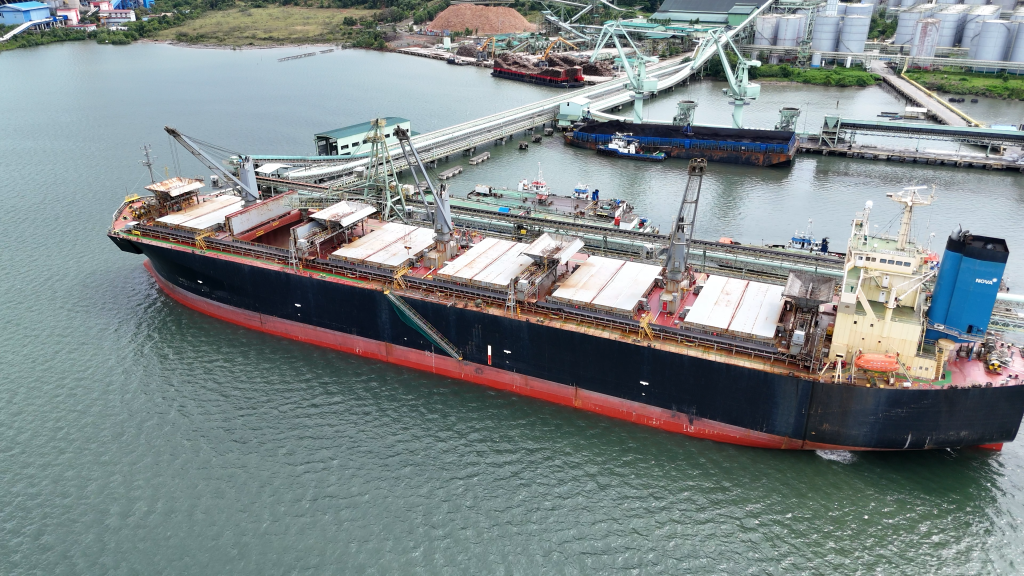

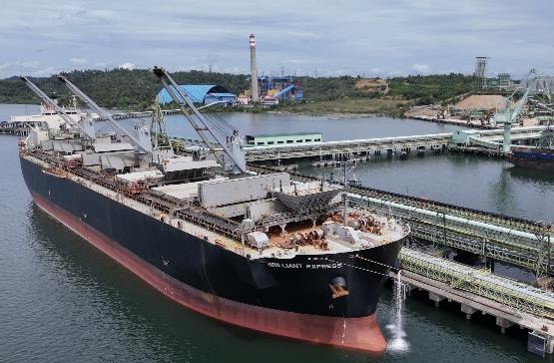

Export
BCL’s Export Jetty is equipped with state of the art chip-loading facilities to vessels with a loading capacity of 14,000 tons/day. The Port pier can accommodate vessels with deadweight size of up to 70,000 DWT.

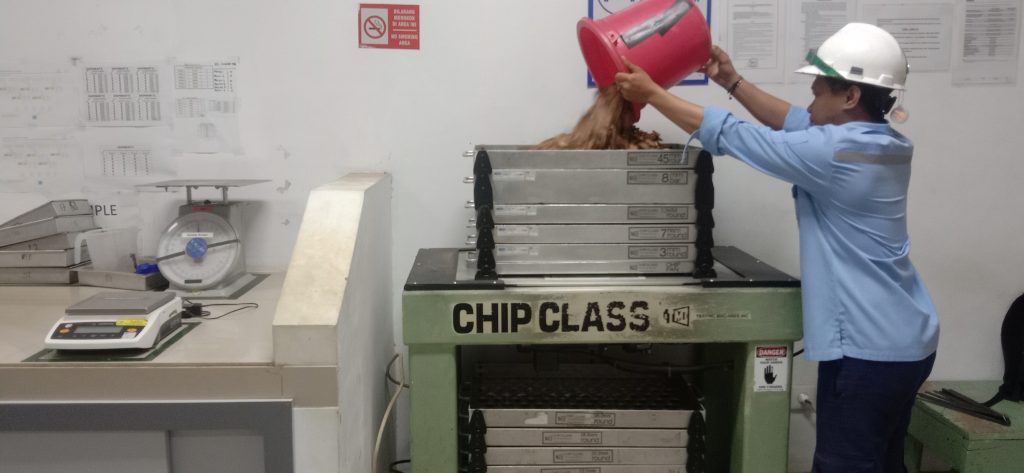

Chip Sample Analysis
To determine the quality and size of the chips produced, chip sample analysis is carried out in the QC laboratory. Some of the parameters measured are:
– Chip Classification (chip size)
– Wood and Chip Moisture
– Sands and/or irons content in the chips
– Wood and Chip Density
